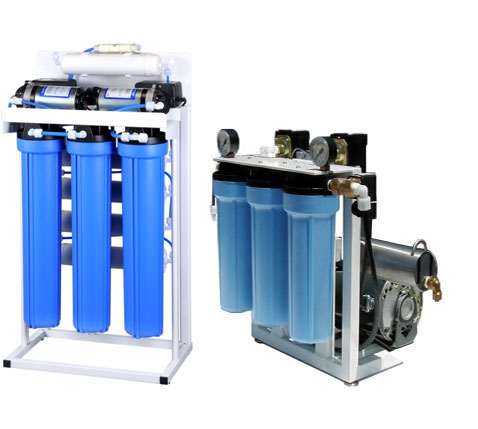

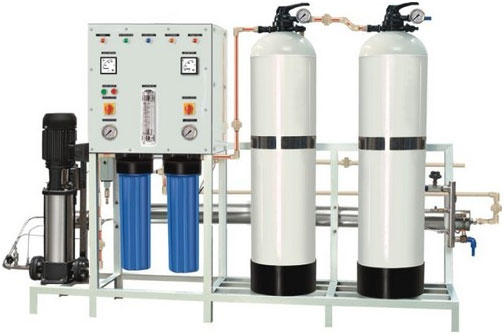

Commercial Reverse Osmosis Systems
Purified water is an essential part of the commercial manufacturing and service industry such as restaurants, food and beverage, cosmetic, window cleaning, pharmaceutical manufacturing units.
Purified water can be obtained through Reverse Osmosis systems. A complete Reverse Osmosis system includes several steps to get effective purified water.
We are the leading supplier of qualitative commercial Reverse Osmosis systems. With our qualified professionals, we are able to offer customized systems in a variety of ranges as per our customer’s requirement.
Features:
• Come with a carbon filter, water softener, Reverse Osmosis system, purified water holding tank, water distribution system, ultraviolet disinfection system, post filter, deionization cartridges and a water quality monitoring system as required
• Available in 100 gallons per day to 1000 gallons per day capacity
• NSF certified low and high pressure RO membrane from GE and DOW
• NSF certified Viqua UV disinfection system
• NSF certified pre-filter and post filters for various contaminant removal
• High quality, NSF certified carbon filter and conditioner treats the water entering the RO system to extend membrane life
• Stainless steel membrane vessel
• Powder coated steel frame
• Flow controllers for waste/recycle water flow
• Feed water low pressure switch with solenoid valve
• High pressure rating tubing and other components
• NSF and CSA approved electrical motors
• Adequate instrumentation allows system to run smoothly to obtain the highest quality of water
• Non-reactive, plastic holding tank with float switch to shut off RO system when tank is full
• Water quality monitoring system monitors outgoing purified water quality constantly
• Optional stainless steel or pressurized tank available to minimize cross contamination
Benefits of RO Purified Water:
• RO water contains almost zero total dissolve solids (TDS)
• RO water will reduces maintenance cost by decreasing scaling in boiler tubing
• Saves operating cost of boilers due to better heat transfer
• Environmentally friendly because less water treatment chemicals are used
• Better tasting food and beverages
• Trusted zero contamination system

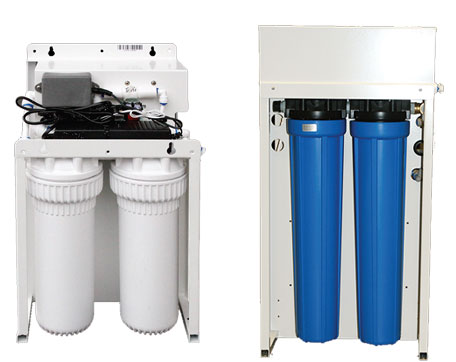

Canature 400 - 800 GPD
Features :
Reliable Performance:
• Designed by professional engineers with extensive commercial water treatment experience.
• Built with high-quality materials for durable and reliable operation.
Affordability:
• Provides an economical solution for light commercial applications.
• Offers efficient water purification without a hefty price tag.
Efficient Operation:
• Operates at a maximum pressure of 120 psi, ensuring optimal performance.
• Nominal salt rejection of 95–98% guarantees high-quality purified water.
Easy Installation:
• Equipped with standard electronic controllers for user-friendly operation.
• Automatic features such as inlet shut-off valves and feed water flush make installation and operation simple.
Versatile Applications:
• Suitable for a wide range of commercial applications, including boiler treatment, food, and beverage processing, and more.
• Adaptable to various water treatment needs, providing flexibility for different industries.
Options:
Model Selection:
• Choose from the CAN 400 Series or CAN 800 Series based on your water purification needs and capacity requirements.
Customization:
• Tailor the system to your specific application with customizable features and options.
• Select additional accessories or upgrades to enhance performance or functionality as needed.
Installation Services:
• opt for professional installation services to ensure proper setup and functionality of your RO system.
• Benefit from expert guidance and support throughout the installation process.
Maintenance Plans:
• Explore maintenance plans to keep your system operating at peak efficiency.
• Schedule regular service visits to extend the lifespan of your RO system and maintain water quality.
Operating Conditions and Specifications:
• Maximum Operating Pressure: 120 PSI
• Feed Water Temperature: Maximum 100°F.
• Total Dissolved Solids: Max 2000 mg/l
• Turbidity: < 1 NTU
• pH Range: 5 to 10
• Silt Density Index: Well Water <3, Surface Water <5.
• Chlorine/Chloramines: Max 0 mg/l
• Iron Maximum: < 0.1 mg/l.
• Manganese Maximum: <0.05 mg/l

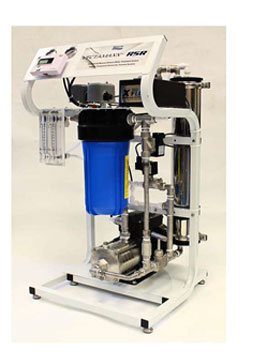

VectaMax RSX 1200 GPD
Features :
Reliable Performance:
• Designed by professional engineers with extensive commercial water treatment experience.
• Built with high-quality materials for durable and reliable operation.
Affordability:
• Provides an economical solution for commercial applications.
• Offers efficient water purification without a hefty price tag.
Efficient Operation:
• Operates at a maximum pressure of 130 psi, ensuring optimal performance.
Versatile Applications:
• Suitable for a wide range of commercial applications, including boiler treatment, food, and beverage processing, and more.
• Adaptable to various water treatment needs, providing flexibility for different industries.
Options:
Model Selection:
• Choose from the VECTAMAX RSR 1200 or VECTAMAX RSR 2400 Series based on your water purification needs and capacity requirements.
Customization:
• Auto flush solenoid and timer
• Panel mount permeate/raw water TDS monitor
• Permeate Pressure Switch
Installation Services:
• opt for professional installation services to ensure proper setup and functionality of your RO system.
• Benefit from expert guidance and support throughout the installation process.
Maintenance Plans:
• Explore maintenance plans to keep your system operating at peak efficiency.
• Schedule regular service visits to extend the lifespan of your RO system and maintain water quality.
Operating Conditions and Specifications:
• Feed Water Pressure: Maximum 65 PSI
• Feed Water Temperature: Maximum 40°C.
• Total Dissolved Solids: Max 1500mg/l
• Turbidity: SDI < 5.0
• pH Range: 5.5 to 9.5
• Chlorine/Chloramines: < 0.1 ppm
• Iron Maximum: < 0.05 mg/l.
• Manganese Maximum: <0.05 mg/l
• Low Pressure Switch: 115VAC/60Hz, cut-out @ 15 psi

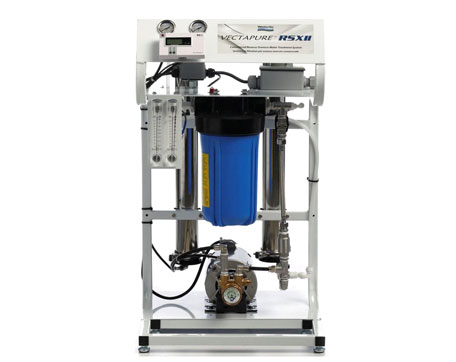

Vectapure RSX 700 GPD
Features :
Reliable Performance:
• Designed by professional engineers with extensive commercial water treatment experience.
• Built with high-quality materials for durable and reliable operation.
Affordability:
• Provides an economical solution for commercial applications.
• Offers efficient water purification without a hefty price tag.
Efficient Operation:
• Operates at a maximum pressure of 150 psi, ensuring optimal performance.
Versatile Applications:
• Suitable for a wide range of commercial applications, including boiler treatment, food, and beverage processing, and more.
• Adaptable to various water treatment needs, providing flexibility for different industries.
Options:
Model Selection:
• Choose from the VECTAMAX RSX 350 or VECTAMAX RSX 750 Series based on your water purification needs and capacity requirements.
Customization:
• Auto flush solenoid and timer
• Panel mount permeate/raw water TDS monitor
• Permeate Pressure Switch
• Permeate/Waste flow meter
Installation Services:
• opt for professional installation services to ensure proper setup and functionality of your RO system.
• Benefit from expert guidance and support throughout the installation process.
Maintenance Plans:
• Explore maintenance plans to keep your system operating at peak efficiency.
• Schedule regular service visits to extend the lifespan of your RO system and maintain water quality.
Operating Conditions and Specifications:
• Feed Water Pressure: Maximum 80 PSI
• Feed Water Temperature: Maximum 35°C.
• Total Dissolved Solids: Max 2000mg/l
• Turbidity: SDI < 5.0
• pH Range: 5.5 to 9.5
• Chlorine/Chloramines: < 0.1 ppm
• Iron Maximum: < 0.05 mg/l.
• Manganese Maximum: <0.05 mg/l
• Hardness: < 6 GPG. (103 mg/l)
• Low Pressure Switch: 115VAC/60Hz, cut-out @ 15 psi
