Ultraviolet Systems
There is no longer a need to be concerned about contamination by harmful microorganisms with a VIQUA system installed.
Features of VIQUA UV Systems
• An environmentally friendly, energy efficient and chemical free system
• Advanced, user friendly, space saving design allows the customer to maintain and service the system easily
• Equipped to inactivate 99.99% chlorine-resistant parasites such as Cryptosporidium and Giardia; harmful bacteria like E.coli; and microscopic viruses
• Specially designed and tested lamps provide consistent and reliable ultraviolet output
• Built with a durable stainless steel chamber to prolong life and eliminate UV light degradation
• LCD controller displays remaining lamp life and problems in system
• Monitored system are equipped with UV sensors which provide a continuous readout of UV intensity
UV Products

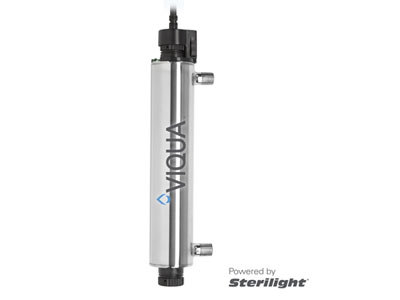

S2Q-PV
Specifications:
i) Suitable for water vending systems or similar OEM applications
ii) Flow rate up to 3 GPM
iii) Dimensions: 17” X 2 ½”
iv) Connection size: ½” MNPT
v) Power consumption: 22W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

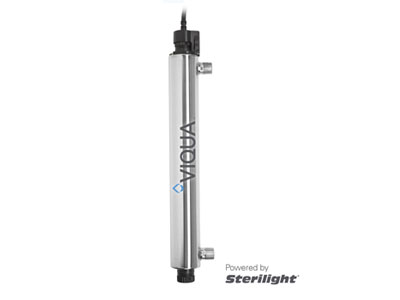

S5Q-PV
Specifications:
i) Designed for water vending machines or similar OEM systems
ii) Flow rate up to 6 GPM
iii) Dimensions: 22” X 2 ½”
iv) Connection size: ¾” MNPT
v) Power consumption: 30W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

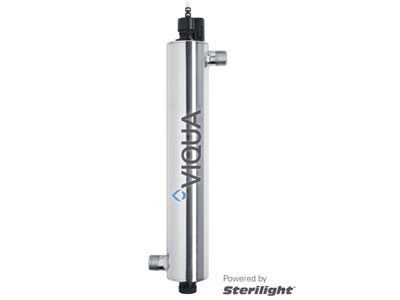

VH410
Specifications:
i) Powerful, compact system designed for light commercial applications or large homes
ii) Flow rate up to 18 GPM
iii) Dimensions: 23 ½” X 3 ½”
iv) Connection size: ¾” FNPT and 1” MNPT combo
v) Power consumption: 60W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

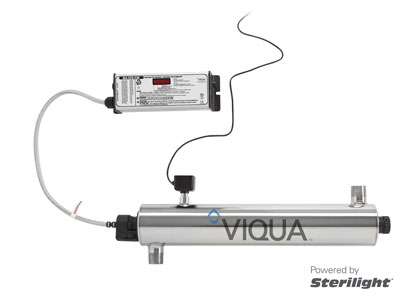

VH410M
Specifications:
i) Powerful, compact system designed for light commercial applications or large homes
ii) Continuous feedback of the UV disinfection performance through a UV sensor
iii) Flow rate up to 18 GPM
iv) Dimensions: 23 ½” X 3 ½”
v) Connection size: ¾” FNPT and 1” MNPT combo
vi) Power consumption: 60W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

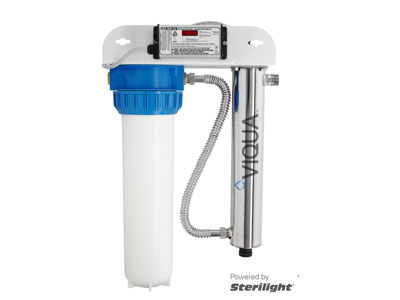

VH410-F20
Specifications:
i) Includes a 20” pre-filtration system with a 5 micron sediment filter
ii) Easy to install steel bracket allows for flexibility and convenience
iii) Flow rate up to 18 GPM
iv) Dimensions: 17” X 10 ½” X 28”
v) Connection size: ¾” FNPT inlet and a 1” MNPT x ¾” FNPT combo outlet
vi) Power consumption: 60W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors
UV Max E4
Specifications:
i) Highly featured, commercial UV disinfection system with a graphical interface
ii) LCD displays remaining lamp life, UV intensity, support and contact information
iii) Flow rate up to 22 GPM
iv) Dimensions: 30” X 4”
v) Connection size: 1” MNPT
vi) Power consumption: 83W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

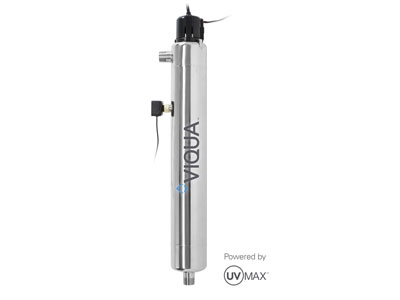

UV Max E4+
Specifications:
i) Highly featured, commercial UV disinfection system with a graphical interface
ii) LCD displays remaining lamp life, UV intensity, support and contact information
iii) Continuous feedback of the UV disinfection performance through a UV sensor
iv) Flow rate up to 22 GPM
v) Dimensions: 30” X 4”
vi) Connection size: 1” MNPT
vii) Power consumption: 83W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

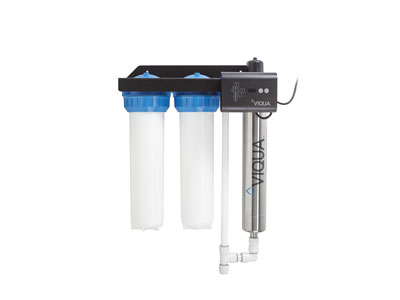

IHS22-E4
Specifications:
i) Includes two 20” filtration system with a 5 micron sediment filter and a taste and odour carbon filter
ii) Easy to install as it is already mounted on heavy duty steel bracket
iii) Flow rate up to 22 GPM
iv) Dimensions: 25” X 12” X 36 ½”
v) Connection size: 1” FNPT inlet and 1” MNPT outlet
vi) Power consumption: 83W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

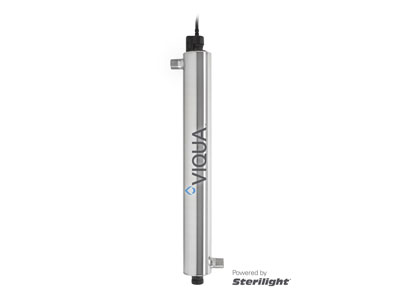

VP600
Specifications:
i) Economical, highly efficient and compact UV system for commercial businesses
ii) Displays lamp life in days and lamp change reminder
iii) Flow rate up to 30 GPM
iv) Dimensions: 30 2/3” X 3 ½”
v) Connection size: 1” MNPT
vi) Power consumption: 70W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

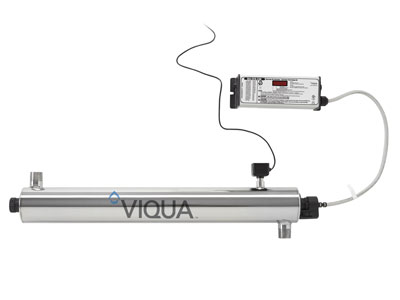

VP600M
Specifications:
i) Economical, highly efficient and compact UV system for commercial businesses
ii) Displays lamp life in days and lamp change reminder
iii) Continuous feedback of the UV disinfection performance through a UV sensor
iv) Flow rate up to 30 GPM
v) Dimensions: 30 2/3” X 3 ½”
vi) Connection size: 1” MNPT
vii) Power consumption: 70W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

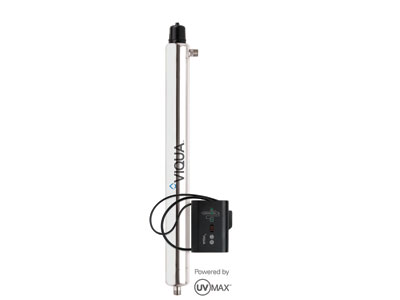

UV Max F4
Specifications:
i) Highly featured, commercial UV disinfection system with a graphical interface
ii) LCD displays remaining lamp life, UV intensity, support and contact information
iii) Flow rate up to 36 GPM
iv) Dimensions: 44 ¼” X 4”
v) Connection size: 1” FNPT
vi) Power consumption: 130W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

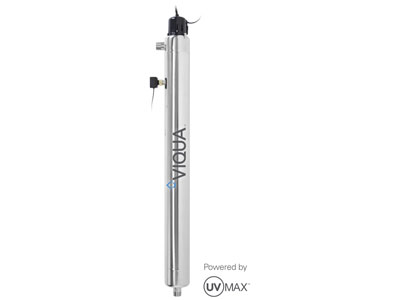

UV Max F4+
Specifications:
i) Highly featured, commercial UV disinfection system with a graphical interface
ii) LCD displays remaining lamp life, UV intensity status, support and contact information
iii) Continuous feedback of the UV disinfection performance through a UV sensor
iv) Flow rate up to 36 GPM
v) Dimensions: 44 ¼” X 4”
vi) Connection size: 1” MNPT
vii) Power consumption: 130W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

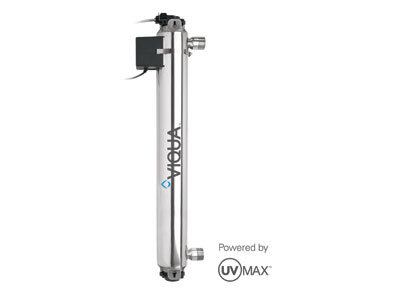

UV Max H
Specifications:
i) Latest amalgam lamp technology provides 4x more UV power than standard lamps
ii) Incorporates cool touch fan technology
iii) Displays lamp life in days and lamp change reminder
iv) Flow rate up to45 GPM
v) Dimension: 31” X 4”
vi) Connection size: 1 ¼” MNPT and 1” FNPT combo
vii) Power consumption: 160W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

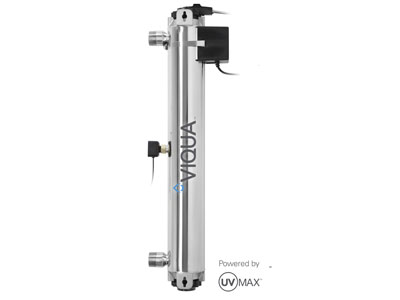

UV Max H+
Specifications:
i) Latest amalgam lamp technology provides 4x more UV power than standard lamps
ii) LCD displays remaining lamp life, UV intensity status, support and contact information
iii) Continuous feedback of the UV disinfection performance through a UV sensor
iv) Flow rate up to 45 GPM
v) Dimensions: 31” X 4”
vi) Connection size: 1 ¼” MNPT x 1” FNPT combo
vii) Power consumption: 160W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

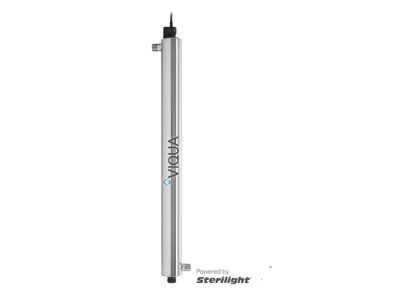

VP950
Specifications:
i) Economical, highly efficient and compact UV system for commercial businesses
ii) Displays lamp life in days and lamp change reminder
iii) Flow rate up to 46 GPM
iv) Dimensions:45” X 3 ½”
v) Connection size: 1 ½” MNPT
vi) Power consumption: 95W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

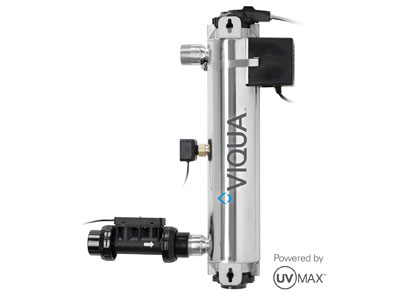

PRO 10
Specifications:
i) NSF 55 Class “A” certified commercial grade UV system
ii) New market leading flow meter and UV sensor combination provides real time UV dose
iii) Incorporates cool touch fan technology
iv) Flow rate up to 10 GPM at 70% UVT
v) Dimensions: 22” X 4”
vi) Connection size: 1 ¼” MNPT and 1” FNPT combo
vii) Power consumption: 120W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

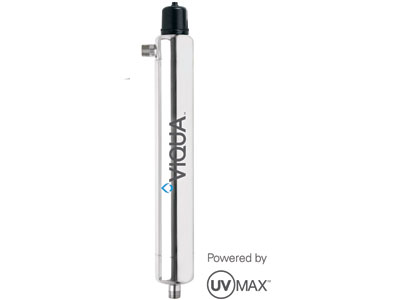

E4-V
Specifications:
i) NSF 55 Class “B” certified version of E4 UV system
ii) Suitable for larger homes and small food processing businesses
iii) Highly featured, commercial UV disinfection system with graphical interface designed
iv) LCD displays remaining lamp life, UV intensity status, support and contact information
v) Flow rate up to 15.8 GPM at 70% UVT
vi) Dimensions: 30” X 4”
vii) Connection size: 1” MNPT
viii) Power consumption: 83W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

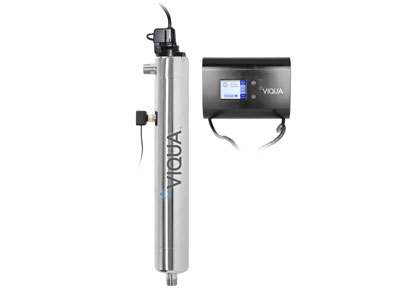

E4-V+
Specifications:
i) NSF 55 Class “B” certified version of E4 UV system
ii) Highly featured, commercial UV disinfection system with a graphical interface
iii) LCD displays remaining lamp life, UV intensity status, support and contact information
iv) Continuous feedback of the UV disinfection performance througha UV sensor
v) Flow rate up to 15.8 GPM at 70% UVT
vi) Dimensions: 30” X 4”
vii) Connection size: 1” MNPT
viii) Power consumption: 83W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors
