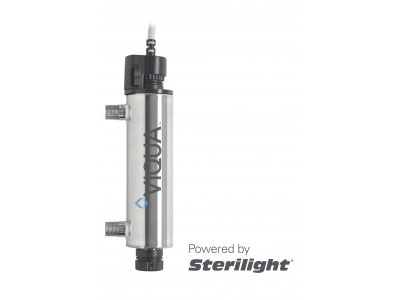

VT 1

Specifications:

i) Single faucet, water fountain or low flow application
ii) Flow rate up to 1 GPM
iii) Dimensions: 12 ½” X 2 ½”
iv) Connection size:⅜” FNPT and ½” MNPT
v) Power consumption: 13W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

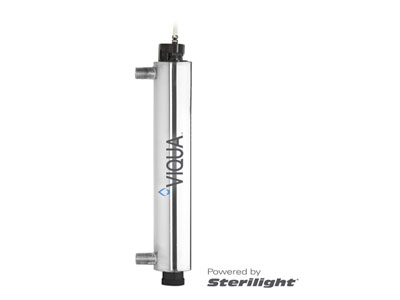

SV5Q-PA

Specifications:

i) NSF 55 Class B certified version of S5Q-PA
ii) Suitable for smaller applications such as cottages and motor homes
iii) Flow rate up to 3.6 GPM
iv) Dimensions: 35 ½” X 2 ½”
v) Connection size: ¾” MNPT
vi) Power consumption: 30W
vii) Without NSF model available: Model S5Q-PA

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

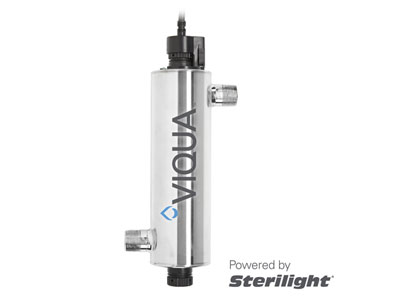

VH200

Specifications:

i) High output lamp technology allows for a more compact foot print without compromising performance
ii) Flow rate up to 9 GPM
iii) Dimensions: 17 ¾” X 3 ½”
iv) Connection size: ¾” FNPT and 1” MNPT combo
v) Power consumption: 35W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

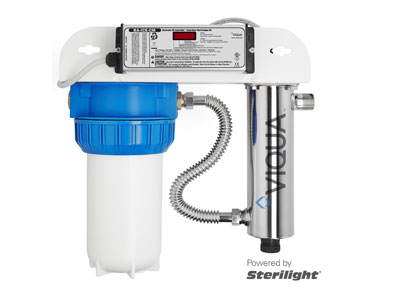

VH200F10

Specifications:

i) Unique 5 micron filtration canister equipped with a UV system
ii) Easy to install steel bracket allows for flexibility and convenience
iii) Flow rate up to 9 GPM
iv) Dimensions: 17” X 10 ½” X 18”
v) Connection size: ¾” FNPT and 1”MNPT X ¾” FNPT combo
vi) Power consumption: 35W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

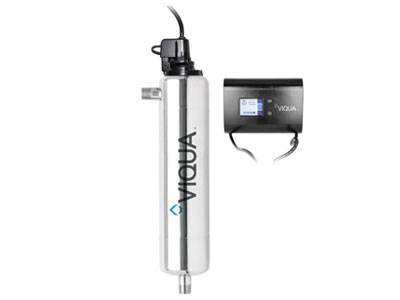

UVMaxD4

Specifications:

i) Highly popular, advanced whole house UV system with graphical interface design
ii) Flow rate up to 12 GPM
iii) Dimensions: 20 ½” X 4”
iv) Connection size: ¾” MNPT
v) Power consumption: 50W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

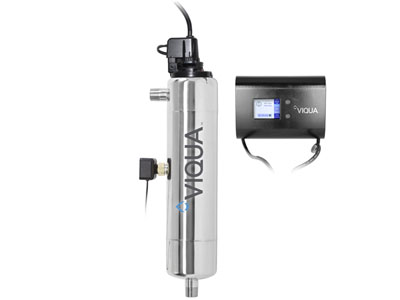

UVMaxD4+

Specifications:

i) Highly popular, advanced whole house UV system with graphical interface design
ii) Continuous feedback of the UV disinfection performance through a UV sensor
iii) LCD displays remaining lamp life, UV intensity, support and contact information
iv) Flow rate up to 12 GPM
v) Dimensions: 20 ½” X 4”
vi) Connection size: ¾” MNPT
vii) Power consumption: 50W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

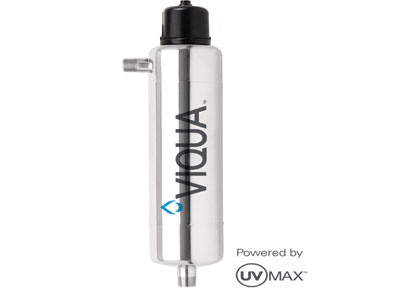

UV Max D4-V

Specifications:

i) NSF 55 Class B certified version of the D4 series
ii) Highly popular, advanced whole house UV system with graphical interface design
iii) Flow rate up to 8.9 GPM
iv) Dimensions: 20 ½” X 4”
v) Connection size: ¾” MNPT
vi) Power consumption: 50W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

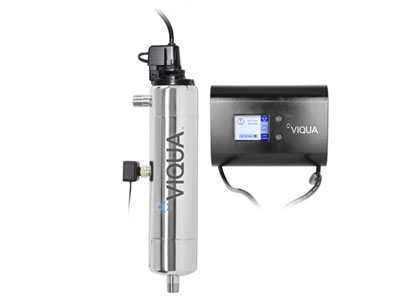

UV Max D4-V+

Specifications:

i) NSF 55 Class B certified, advanced version of the D4-V series
ii) Highly popular, advanced whole house UV system with graphical interface design
iii) Continuous feedback of the UV disinfection performance through a UV sensor
iv) LCD displays remaining lamp life, UV intensity, support and contact information
v) Flow rate up to 8.9 GPM
vi) Dimensions: 20 ½” X 4”
vii) Connection size: ¾” MNPT
viii) Power consumption: 50W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

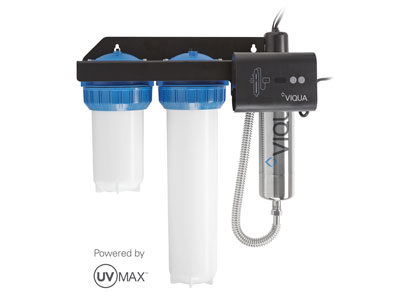

IHS12-D4

Specifications:

i) 10” and 20” filtration system with a 5 micron sediment filter and a taste and odour carbon filter
ii) Easy to install steel bracket allows for flexibility and convenience
iii) Flow rate up to 12 GPM
iv) Dimensions: 25 1/5” X 12” X 28”
v) Connection size: ¾” FNPT inlet and ¾” MNPT outlet
vi) Power consumption: 50W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

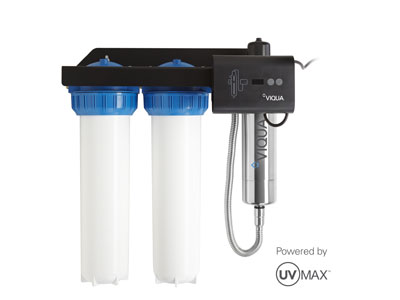

IHS22-D4

Specifications:

i) Includes two 20” filter housings with a 5 micron sediment filter and a taste and odor carbon filter
ii) Easy to install steel bracket allows for flexibility and convenience
iii) Flow rate up to 12 GPM
iv) Dimensions: 25 1/5” X 12” X 28”
v) Connection size: ¾” FNPT inlet and ¾” MNPT outlet
vi) Power consumption: 50W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

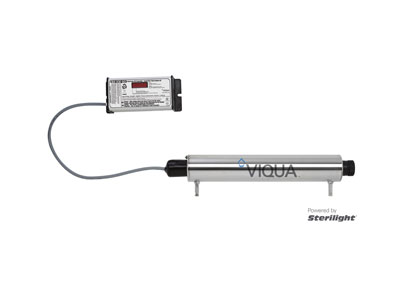

S2Q-OZ

Specifications:

i) Air Venturi Ozone disinfection system
ii) Suitable for hot tubs or spas
iii) Flow rate of 70 mg Ozone at 5 CFH air flow at 30 mJ/cm
iv) Dimensions: 16 ½” X 2 ½”
v) Connection size: ⅜” tube
vi) Power consumption: 22W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

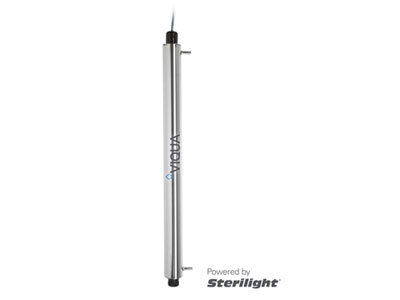

S8Q-OZ

Specifications:

i) Air Venturi Ozone disinfection system
ii) Suitable for small residential swimming pools up to 20,000 gallons
iii) Flow rate of 220 mg Ozoneat 5 CFH air flow at 30 mJ/cm2
iv) Dimensions: 33 ½” X 2 ½”
v) Connection size: ⅜” tube
vi) Power consumption: 46W

Warranty:

i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors
