Commercial Filters by RiTech Water Systems

Commercial Filters

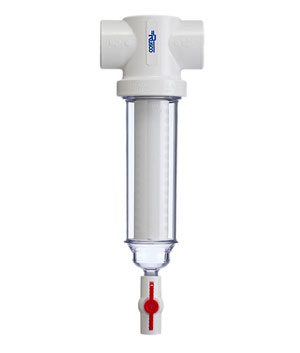

Rusco Spin-Down Sediment Filter

Features:

• Clear Cover is easily removed for total cleaning (No tools required*)
• Flow capacity for entire system.
• Sediment is visible through the clear cover indicating when the filter needs cleaning.
• Sediment is quickly and easily removed by opening the ball valve at the bottom of the filter cover.
• Reusable polyester and stainless-steel element screens in many mesh sizes.
• No down time.
• Available in 3/4”, 1”, 1-1/2”, and 2” sizes.
• Pressure: 150 psi
• Temp.: 200°F

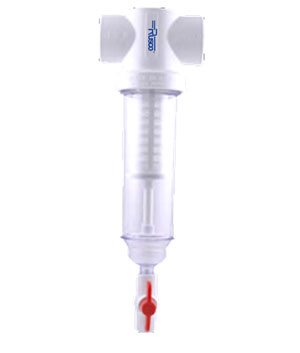

Rusco Spin-Down Sediment Trapper

Features:

• Unique element design traps sediment in lower reservoir of clear cover
• Clear bowl easily removed for total cleaning (No tools required*)
• Flow capacity for entire system.
• Sediment is visible through the clear cover indicating when the filter needs cleaning.
• No down time
• Ball valve allows for quick sediment removal from bottom of cover.
• Centrifuge Spin-Down type sediment separation.
• Reusable polyester and stainless-steel element screen available in many mesh sizes from very fine to very coarse.
• Available in 3/4”, 1”, 1-1/2”, and 2” sizes.
• Pressure: 150 psi
• Temp.: 200°F

Sediment Filters

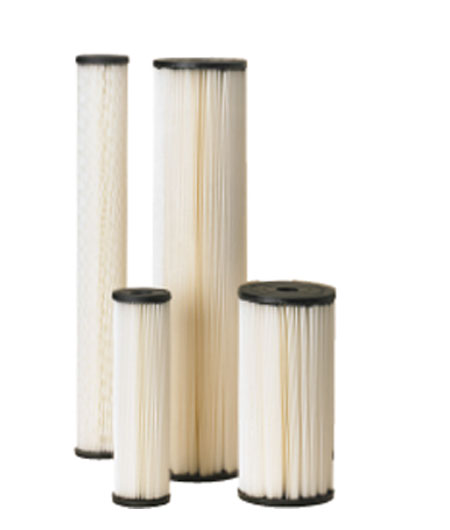

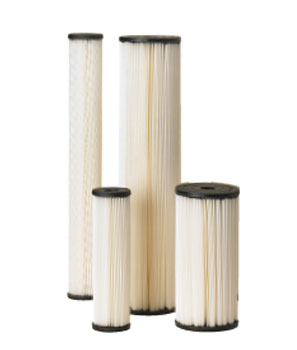

S1 Series Pleated Cellulose Cartridges

Lengths: 10", 20", 10BB, 20BB
Micron: 20
Material: Cellulose
Temp.: 40°F - 145°F

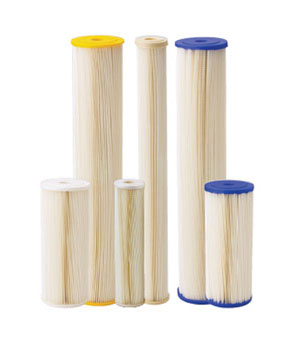

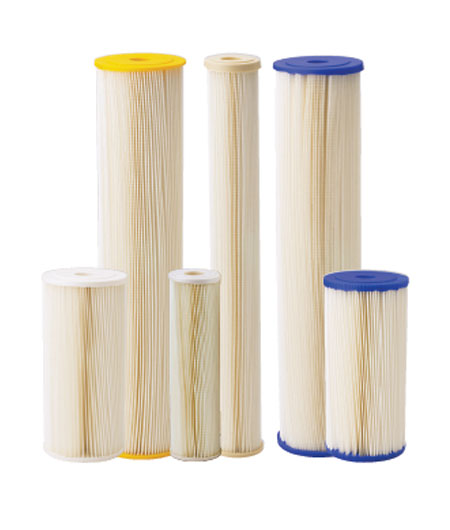

ECP Series Pleated Cellulose Polyester Cartridges

Lengths: 10", 20", 10BB, 20BB
Micron: 1, 5, 20, 50
Material: Cellulose Polyester
Temp.: 40°F - 125°F

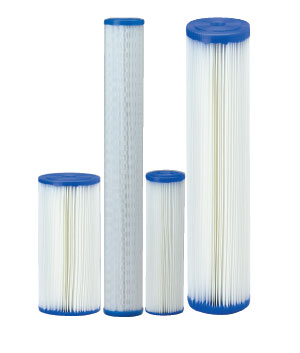

R Series Pleated Polyester Cartridges

Lengths: 5", 10", 20",10BB, 20BB
Micron: 30, 50
Material: Polyester
Temp.: 40°F - 125°F

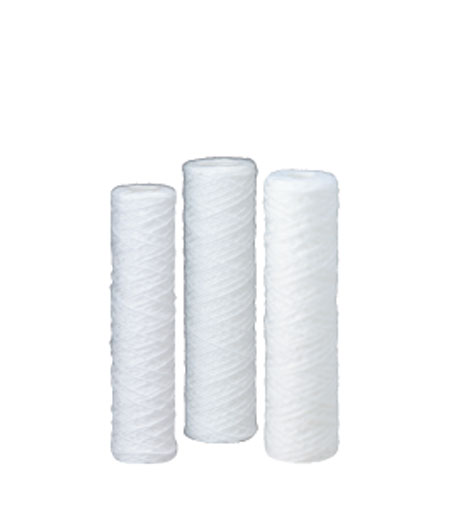

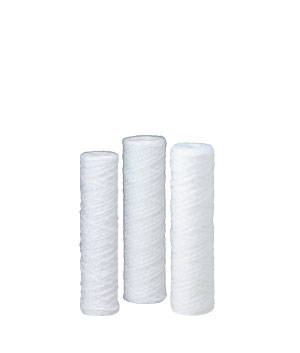

CW/WP Series Polypropylene Wound Cartridges

Lengths: 10"
Micron: 5, 10, 30, 50
Material: Polypropylene Fiber Cord
Temp.: 40°F - 165°F

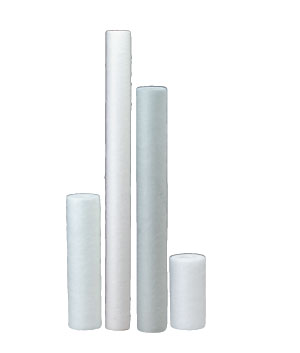

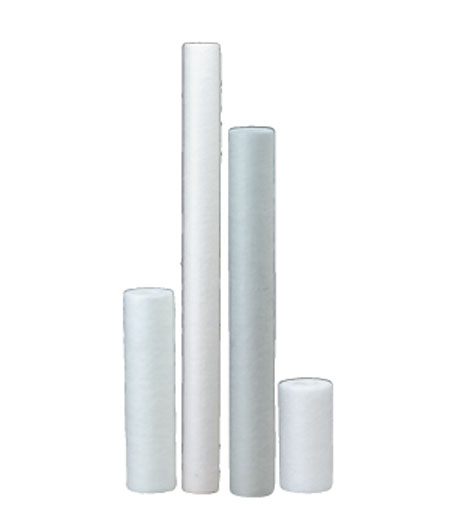

P Series Spun Polypropylene Cartridges

Lengths: 5", 10", 20", 30", 40"
Micron: 1, 5, 25
Material: Polypropylene Fibers
Temp.: 40°F -145°F

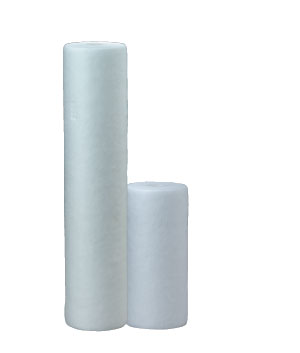

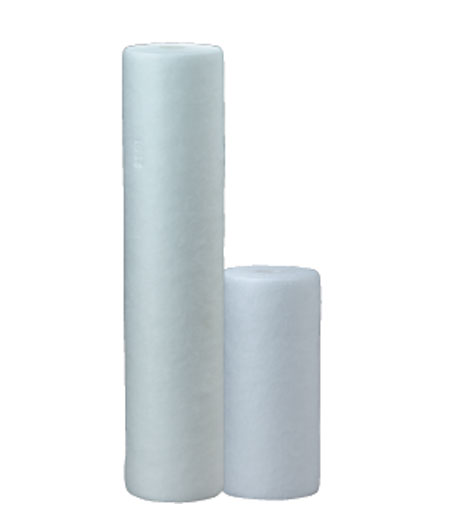

DGD Series Dual-Gradient Density Cartridges

Lengths: 10BB, 20BB
Micron: 25 to 1 Micron, 50 to 5 Micron, and 75 to 25 Micron
Material: Polypropylene
Temp.: 40°F -145°F

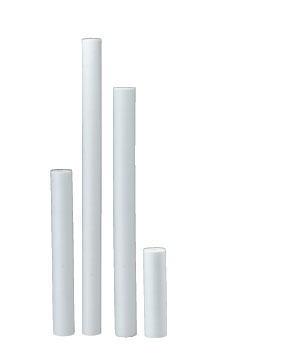

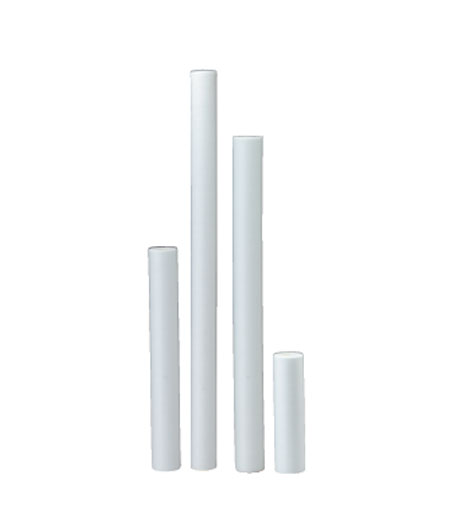

PD Series Polydepth Series Polypropylene Cartridges

Lengths: 10", 20", 30", 40"
Micron: 1, 5, 10, 25, 50
Material: Polypropylene
Temp.: 40°F -175°F

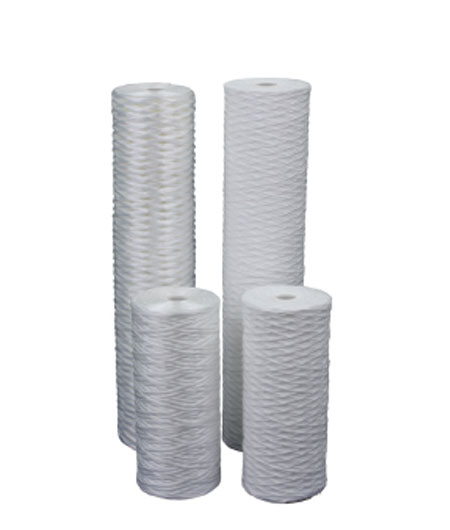

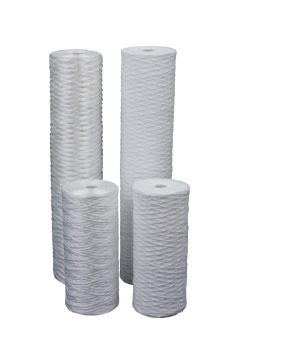

WP/WPX-BB Series Cartridges

Lengths: 10", 20"
Micron: WP-BB: 0.5*, 1, 5, 10, 25, WPX-BB: 5, 10, 25, 50, 100
Material: Polypropylene String-Wound (WP Series)
Fibrillated Polypropylene String-Wound (WPX Series)
Temp.: 40°F to 165°F

*Reduces particles as small as 0.5 micron in size by mechanical means but is not intended to be used for the removal of microbial pests including viruses, bacteria and cysts.

Carbon Filters

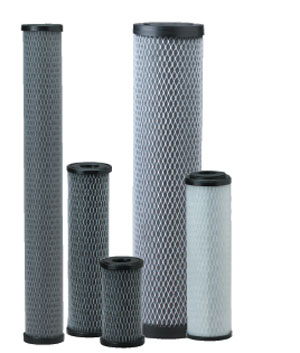

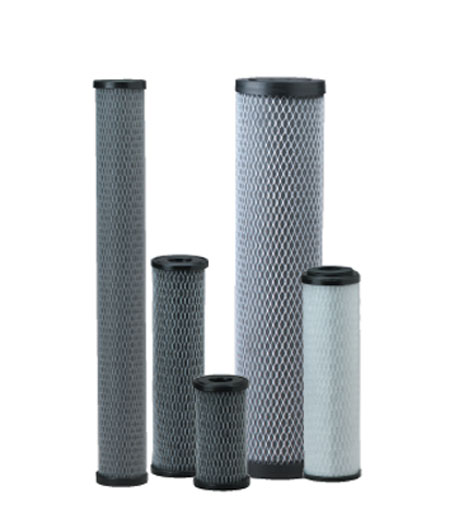

C Series Cellulose Carbon Cartridges

Lengths: 5", 10", 20", 20BB
Microns: 1 (C8), 5
Material: PAC Impregnated Cellulose
Temp.: 40°F - 145°F (C8)
40°F - 125°F
(C1, C2, C1-20, 20BB)

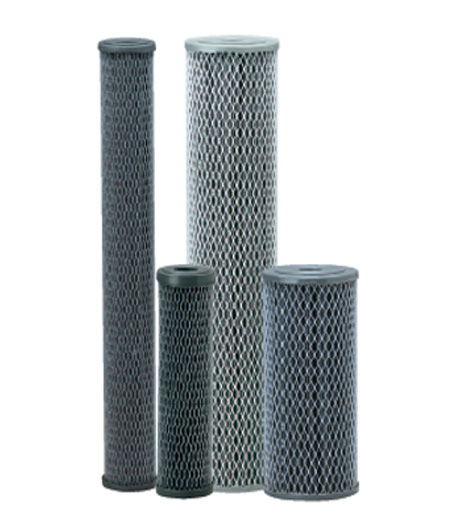

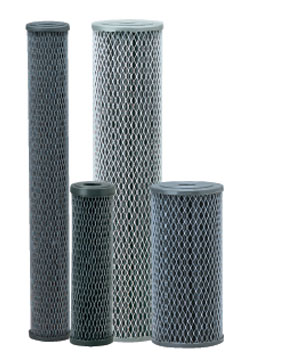

NCP Series Non-Cellulose Carbon Pleated Cartridges

Lengths: 10", 20", 10BB, 20BB
Micron: 10
Material: Pleated Carbon - Impregnated
Temp.: 40°F -125°F

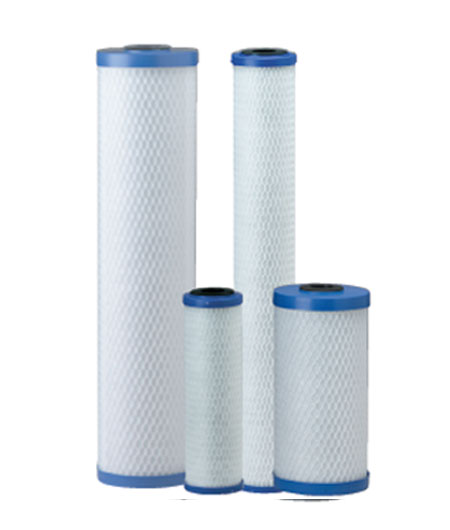

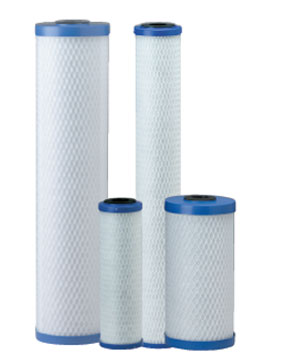

EP Series Carbon Block Cartridges

Lengths: 10", 20", 30", 40", 10BB, 20BB
Micron: 5
Material: Extruded Carbon Block
Temp.: 40°F - 180°F

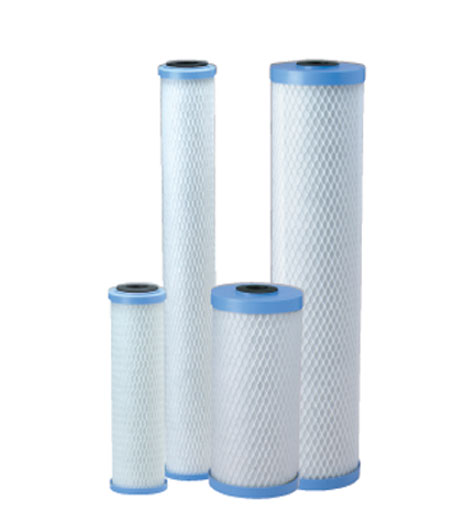

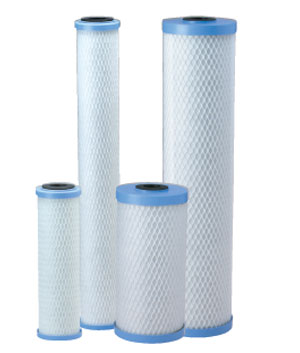

EPM Series Carbon Block Cartridges

Lengths: 10", 20", 10BB, 20BB
Micron: 10
Material: Extruded Carbon Block
Temp.: 40°F - 180°F

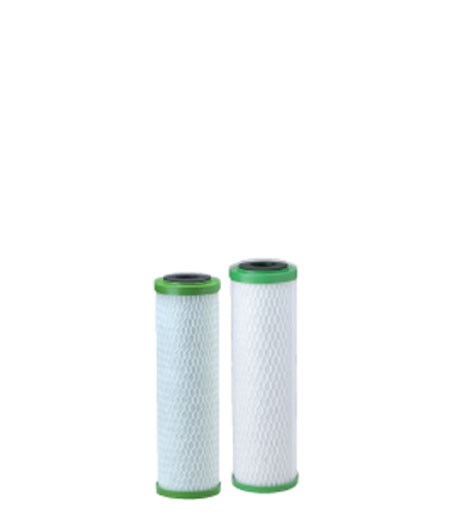

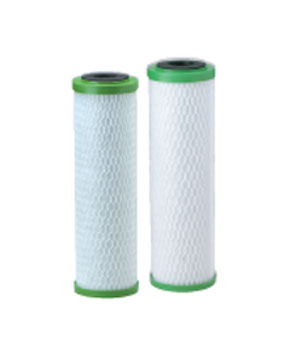

CBR2 Series Carbon Block Cartridge

Length: 10"
Micron: 0.5*
Material: Extruded Carbon Block
Temp.: 40°F - 165°F

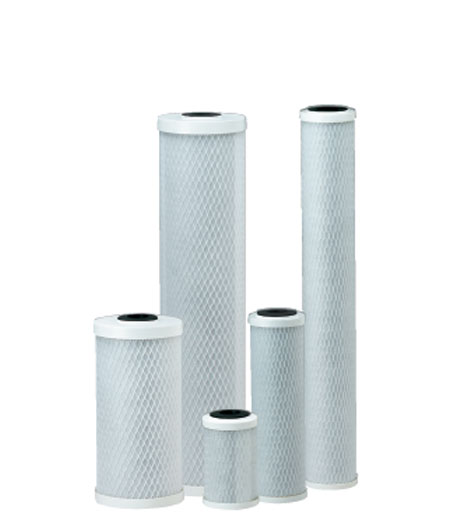

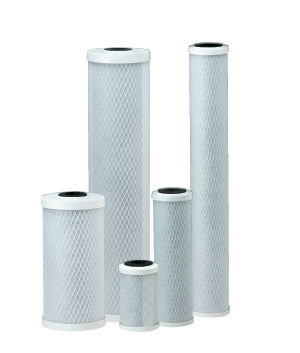

CBC Series Carbon Block Cartridges

Lengths: 5", 10", 20", 10BB, 20BB
Micron: 0.5*
Material: Extruded Carbon Block
Temp.: 40°F - 185°F

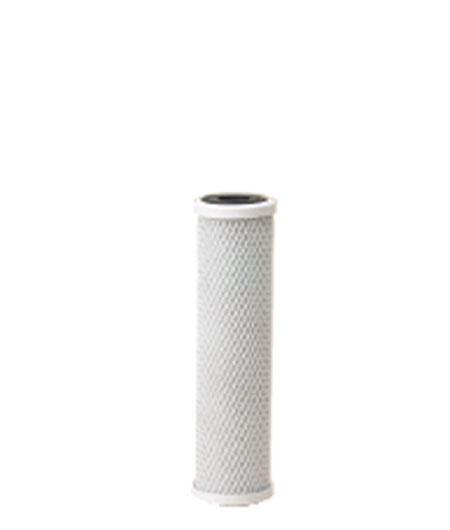

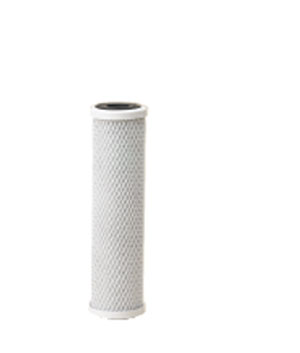

CB1 Series Carbon Block Cartridge

Length: 10"
Micron: 1
Material: Extruded Carbon Block
Temp.: 40°F - 180°F

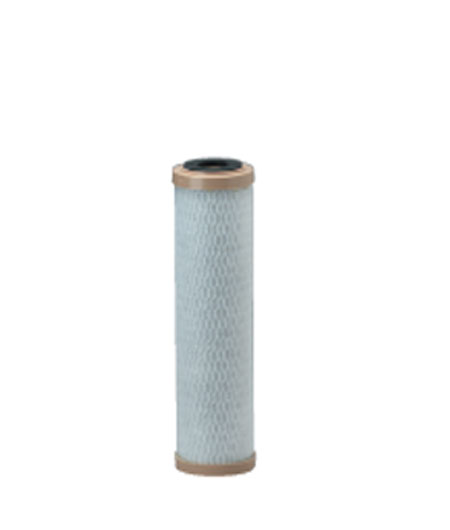

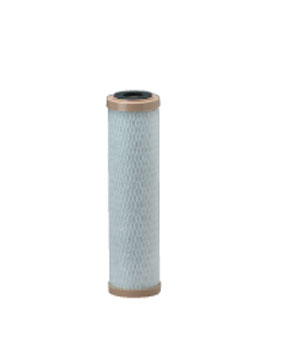

CCBC Series Coconut Carbon Block Cartridge

Length: 10"
Micron: 1
Material: Water-Washed Extruded Carbon Block
Temp.: 40°F - 125°F

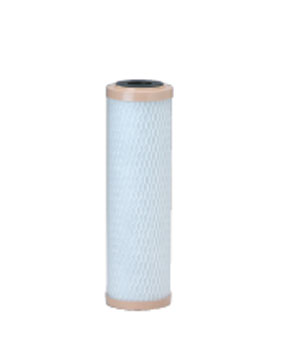

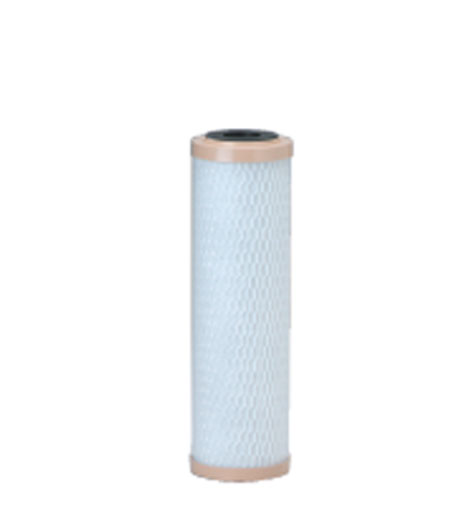

CEP Series Coconut Carbon Block Cartridge

Length: 10", 20"
Micron: 5
Material: Acid-Washed Extruded Carbon Block
Temp.: 40°F - 125°F

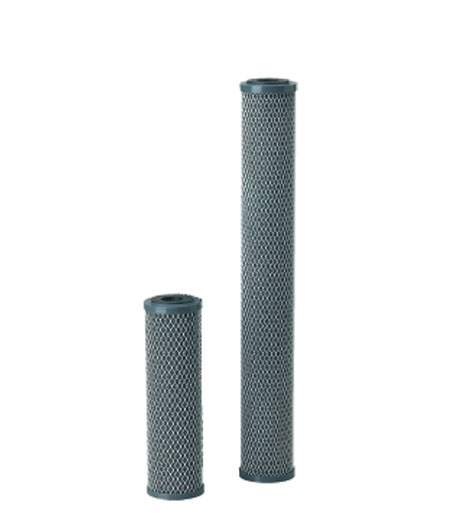

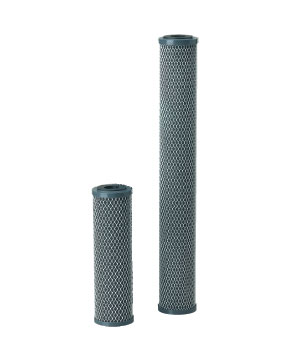

CFB Series Fibredyne Carbon Block

Lengths: 10", 20", 30"
Micron: 10
Material: Modified Molded Carbon Block
Temp.: 40°F - 180°F

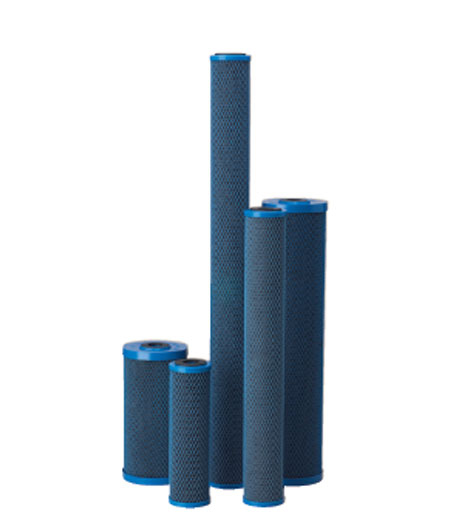

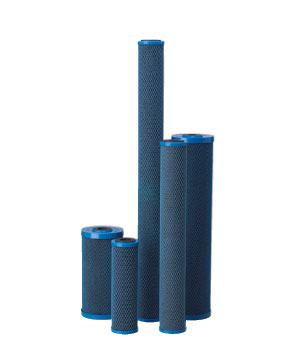

CFB-Plus Series Fibredyne Carbon Block

Lengths: 10", 20", 30", 10BB, 20BB
Microns: 5 - 10
Material: Modified Molded Carbon Block
Temp.: 40°F - 180°F

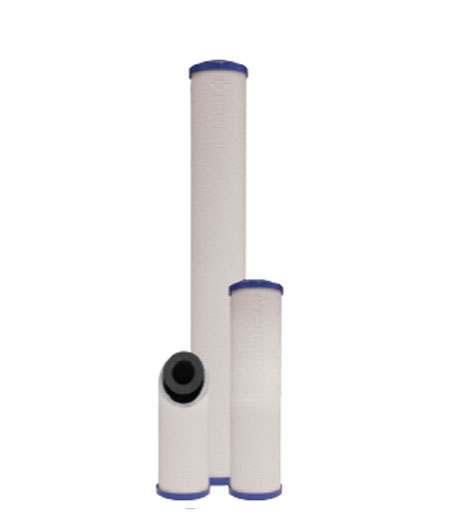

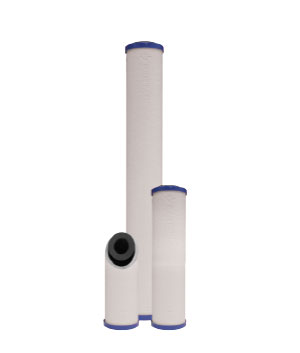

DFX Series Dual-technology Cartridges

Lengths: 10", 20"
Microns: 10
Material: Carbon Block Core, Polyspun Outer Shell
Temp.: 40°F - 125°F

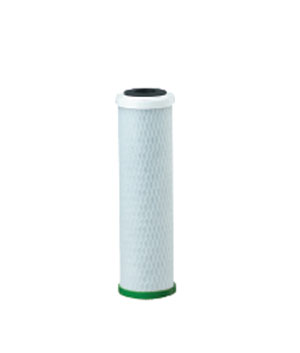

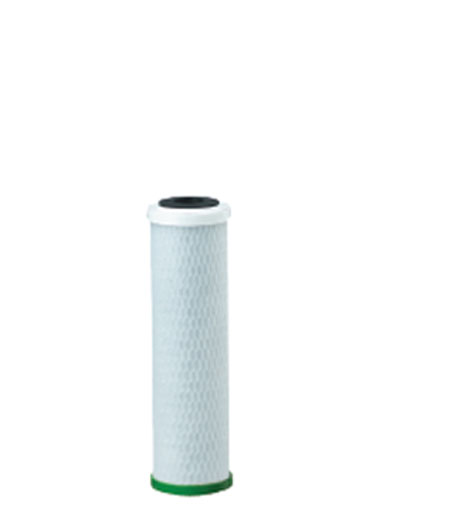

CBU Series UV System Replacement Cartridge

Lengths: 10"
Microns: 0.5*
Material: Extruded Carbon Block
Temp.: 40°F - 180°F

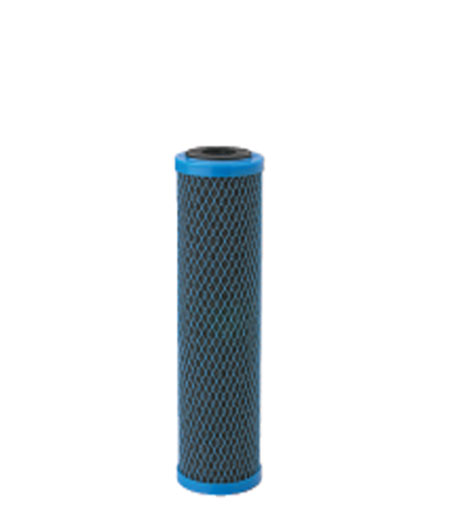

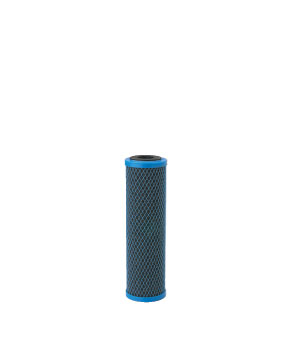

CFB-PB10 Series Lead Reduction Fibredyne Carbon Block

Length: 10"
Micron: 0.5*
Material: Modified Molded Carbon Block
Temp.: 40°F - 180°F

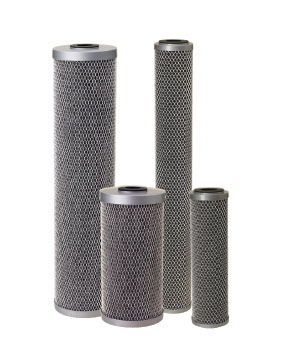

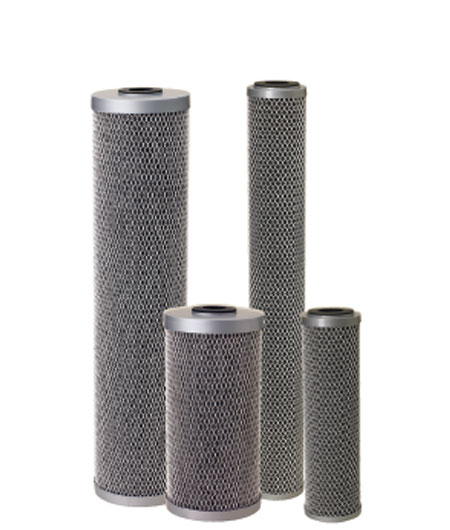

Floplus Series Fibredyne Carbon Block

Lengths: 10", 20", 10BB, 20BB
Micron: 0.5*
Material: High Flow Molded Carbon Block
Temp.: 40°F - 180°F

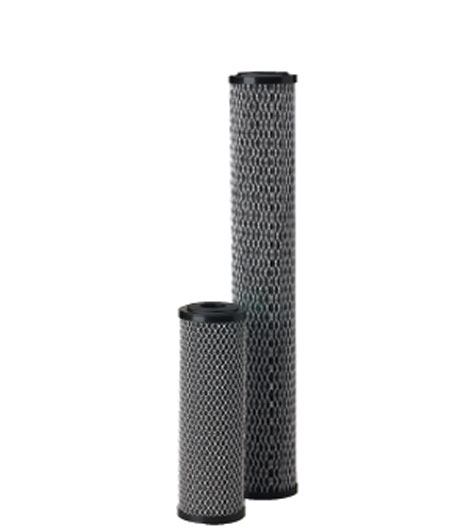

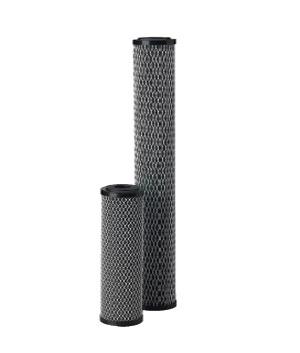

CFBC Series Fibredyne Carbon Block

Lengths: 10", 20"
Micron: 0.5*
Material: Modified Molded Carbon Block
Temp.: 40°F - 180°F

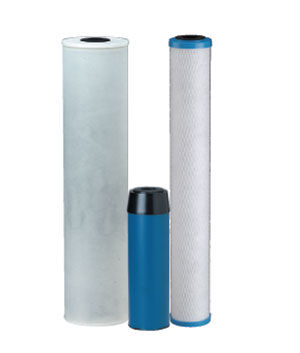

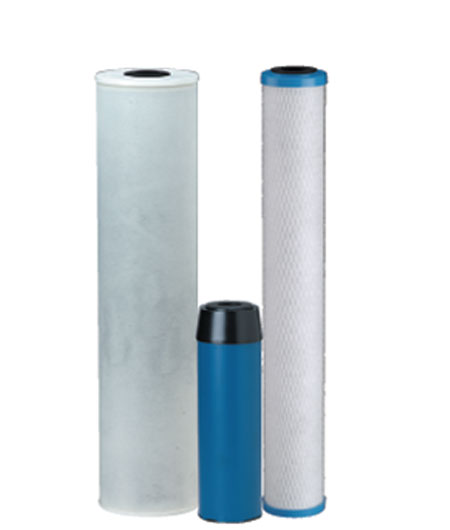

CRFC and ChlorPlus Series Chloramine Reduction Carbon Cartridges

Lengths: 10", 20", 10BB, 20BB
Microns: 1, 25
Material:
Granular Activated Carbon
• Extruded Carbon Block
Temp.: 40°F - 125°F

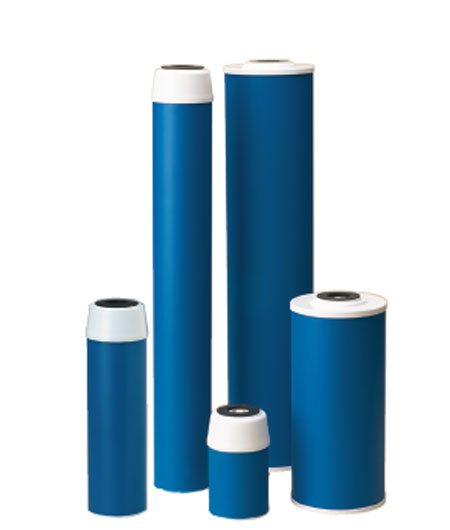

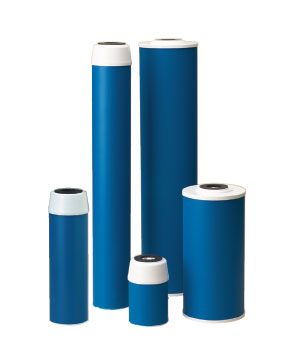

GAC Series Granular Activated Carbon Cartridges

Lengths: 5", 10", 20", 10BB, 20BB
Micron: NR
Material:Granular Activated Carbon
Temp.: 40°F - 125°F

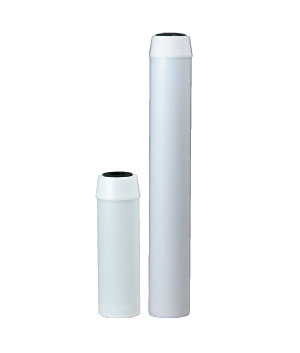

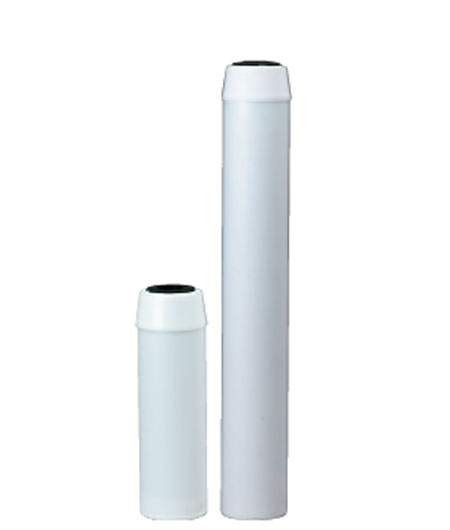

CC Series Coconut Shell Carbon Cartridge

Lengths: 10", 20"
Micron: NR
Material:Granular Activated Carbon
Temp.: 40°F - 125°F

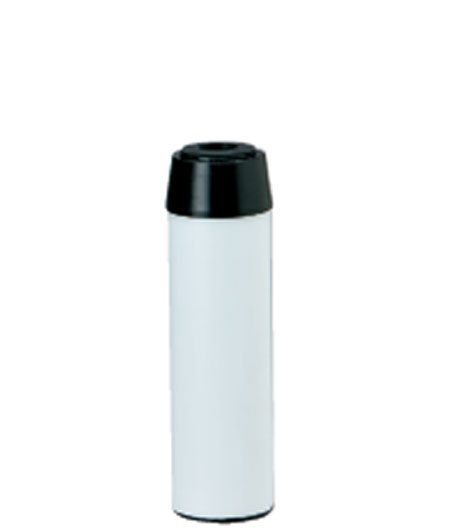

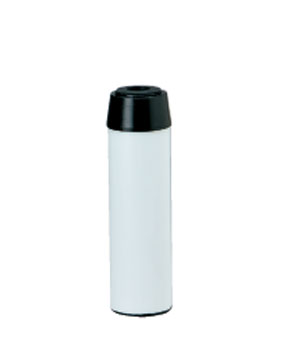

TSGAC Series Carbon/Phosphate Cartridge

Length: 10"
Micron: NR
Material: Granular Activated Carbon with Hexametophosphate Crystals
Temp.: 40°F - 125°F

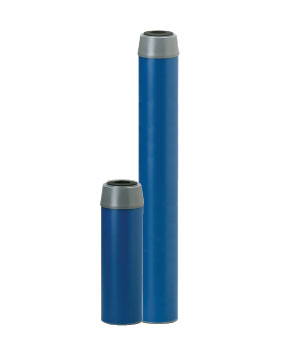

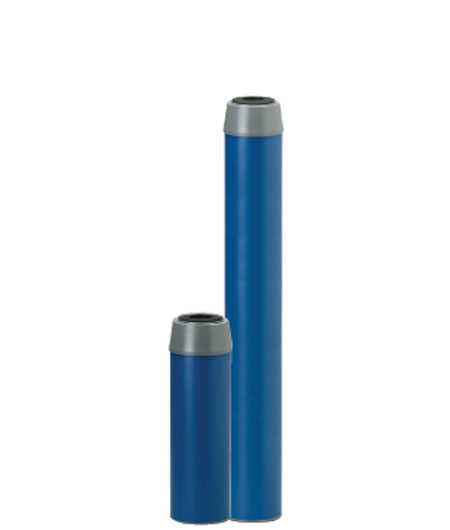

SGAC Series Carbon Cartridges

Lengths: 10", 20"
Micron: NR
Material: Silver Impregnated Granular Carbon
Temp.: 40°F - 125°F

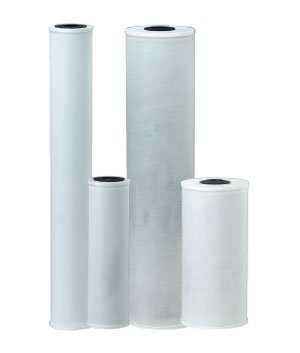

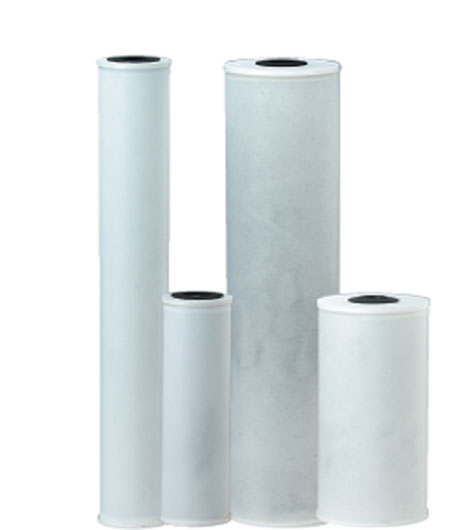

RFC Series Radial Flow Carbon Cartridges

Lengths: 10", 20", 10BB, 20BB
Micron: 25
Material: Granular Activated Carbon
Temp.: 40°F - 125°F

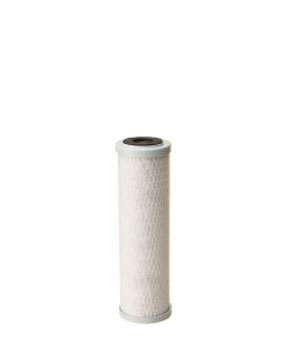

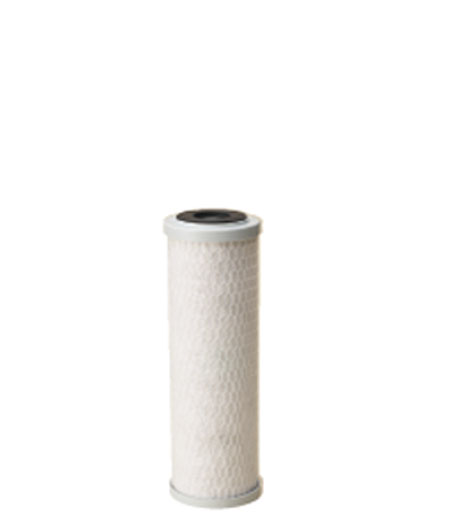

SCBC-10 Series Carbon Cartridge

Length: 10"
Micron: 0.5*
Material: Silver Impregnated Extruded Carbon Block
Temp.: 40°F - 145°F

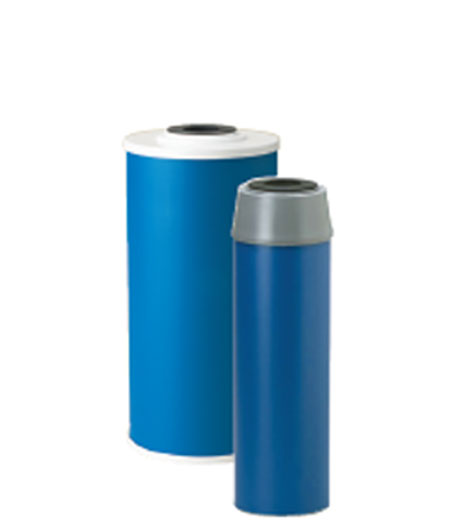

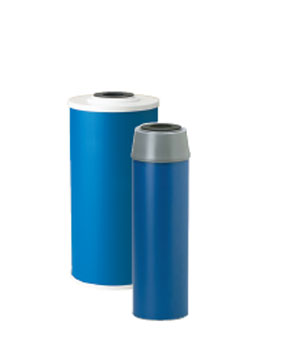

UDS/DBC Series Granular Activated Carbon Cartridges

Length: 10", 10BB
Micron: 5
Material: Granular Activated Carbon
Temp.: 40°F - 100°F

*Reduces particles as small as 0.5 micron in size by mechanical means but is not intended to be used for the removal of microbial pests including viruses, bacteria and cysts.

Specialty Filters

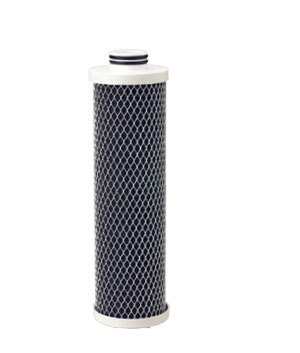

MG-10MCB Microguard Series Cartridge

Length: 10"
Micron: 0.15*
Material: Carbon Pre-Filter with Hollow Fiber Membrane
Temp.: 40°F - 140°F

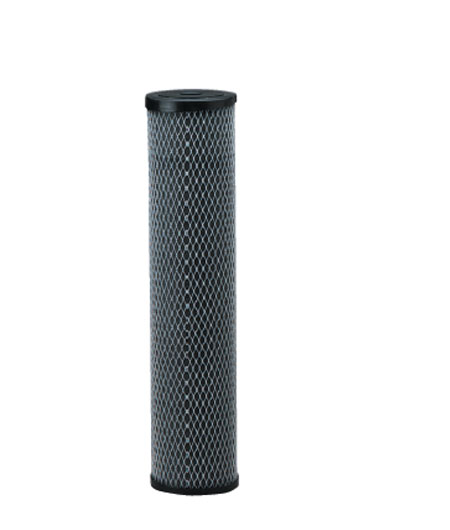

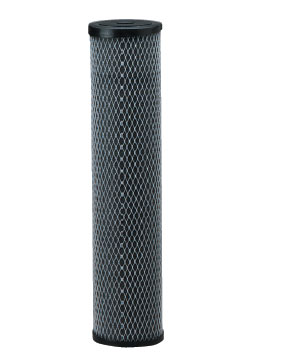

OAC PLUS Series Oil-Adsorbing Cartridge

Length: 10 - 40", 10" and 20" BB
Material: Proprietary
Temp.: 180°F

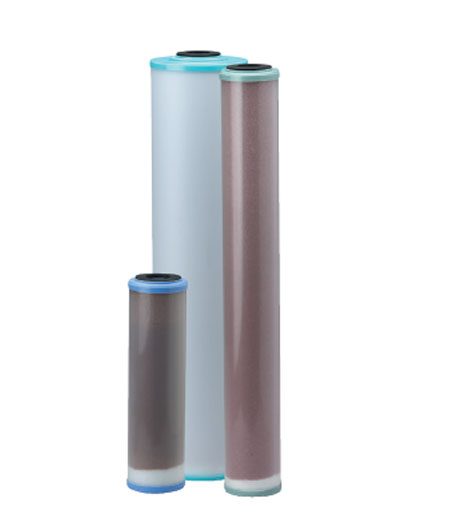

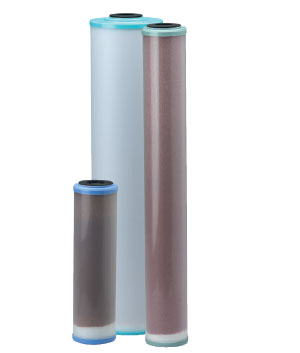

WS Series Water Softener Cartridges

Lengths: 10", 20", 20BB
Material: Cation Resin
Temp.: 40°F - 100°F

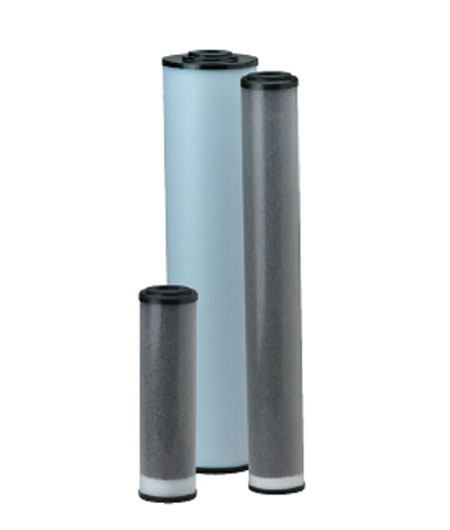

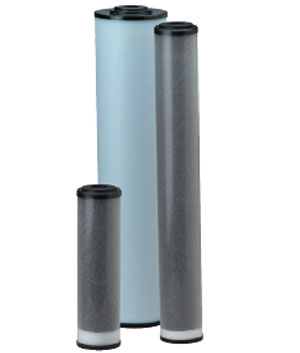

PCF/BBF1 Series Mixed Bed Deionization Cartridges

Lengths: 10", 20", 20BB
Material: Mixed Bed DI Resins
Temp.: 40°F - 100°F

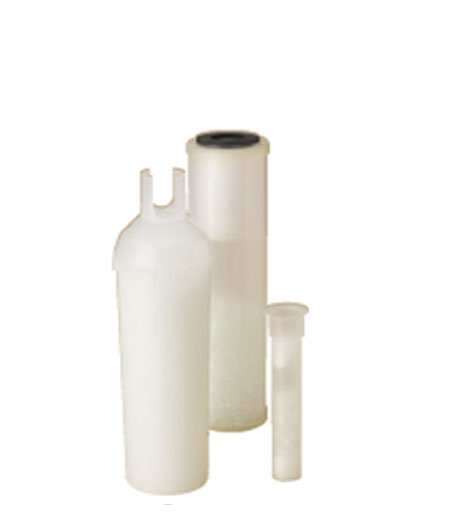

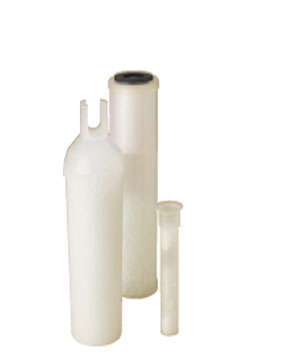

PCC Series Hexametaphosphate Crystal Cartridges

Lengths: 10", 20" Cartridge insert
Material: Hexametaphosphate Crystals
Temp.: 40°F - 100°F

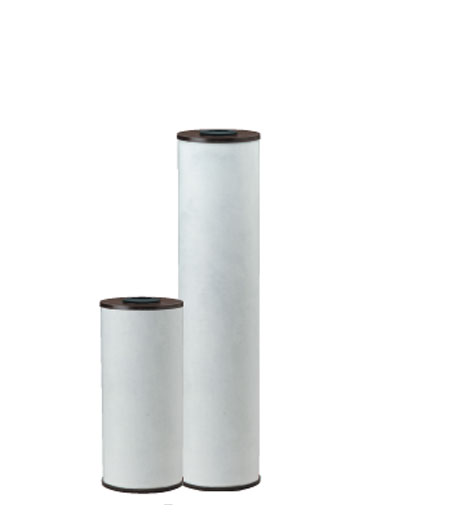

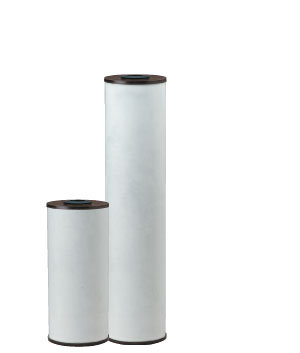

RFFE Series Radial Flow Iron Reduction Cartridge

Lengths: 10BB, 20BB
Material: Manganese Activated Zeolite
Temp.: 40°F - 125°F

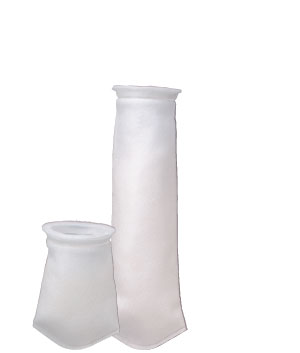

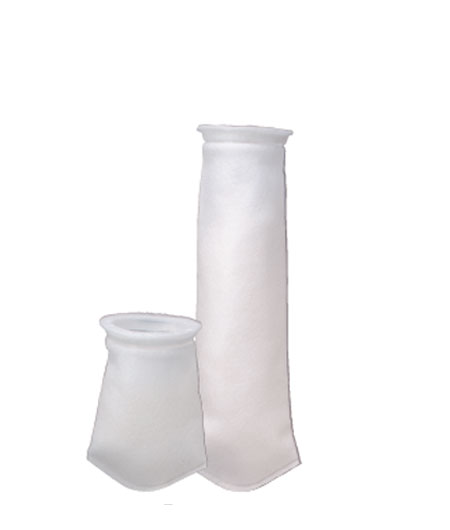

BP, BPHE & BN Series Filter Bags

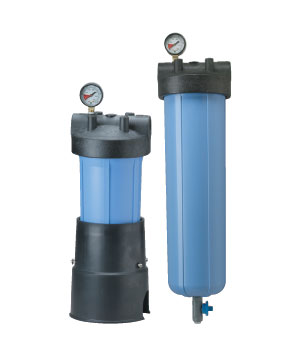

Lengths: 10", 20" PBH Housings
Microns: 1 - 200 for BP, 1-100 for BPHE and 50 - 800 for BN
Max. Temp.: 200°F (bags only)

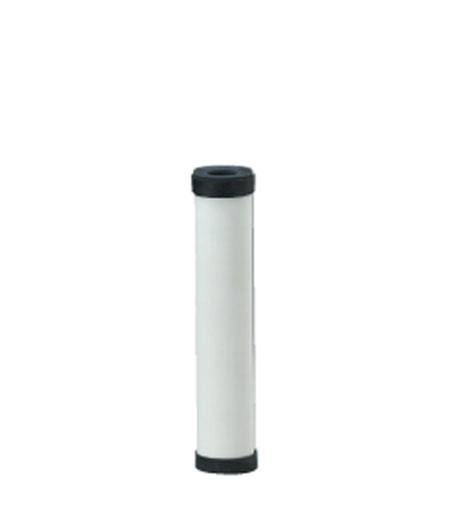

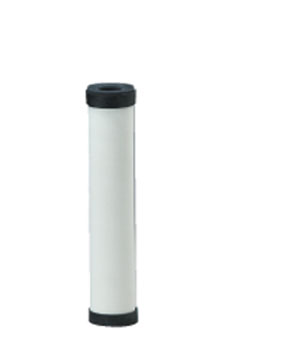

CRE-1 Ceramic Cartridge

Length: 10"
Micron: 1
Material: Sintered Ceramic
Temp.: 40°F - 125°F

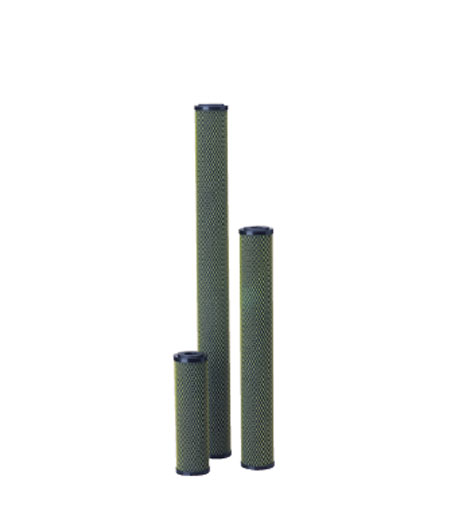

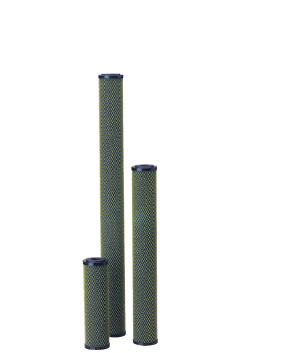

ELPC Series Electroplating Fibredyne Carbon Block

Lengths: 10", 20", 30"
Micron: 10
Material: Bonded PAC
Temp.: 40°F -180°F

*Reduces particles as small as 0.5 micron in size by mechanical means but is not intended to be used for the removal of microbial pests including viruses, bacteria and cysts.

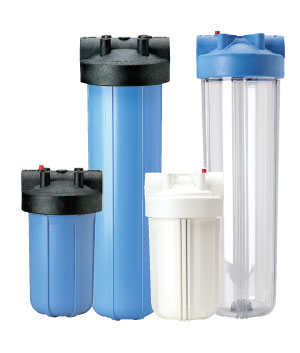

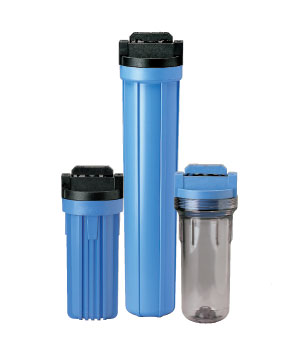

Filter Housing

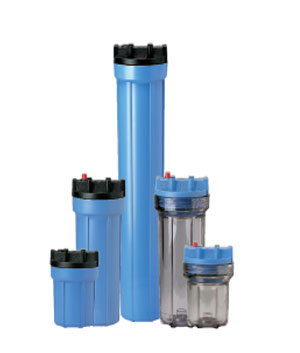

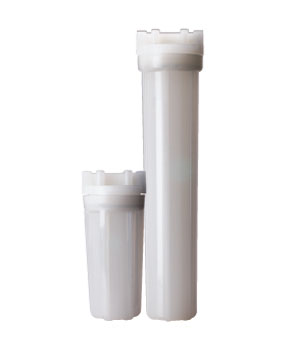

Slim Line Filter Housings

Lengths: 5", 10", 20"
Connections: 1/4", 3/8" or 1/2" NPT
Materials:
• Polypropylene
• Styrene Acrylonitrile
Max. Temp.: 125°F

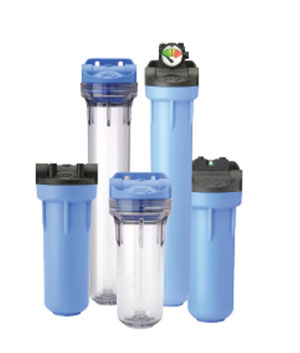

3G Slim Line and 3G Standard Filter Housings

Lengths: 10", 20"
Connections: John Guest Connections 1/4" & 3/8" Slim Line. Threaded 1/4", 3/8", 1/2" Slim Line. 3/4" Standard.
Materials:
• Polypropylene
• Styrene Acrylonitrile
Max. Temp.: 125°F

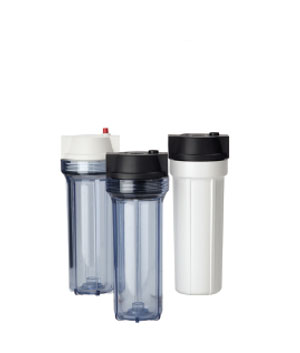

Flat Cap Slim Line Filter Housings
