Ultraviolet Systems
There is no longer a need to be concerned about contamination by harmful microorganisms with a VIQUA system installed.
Features of VIQUA UV Systems
• An environmentally friendly, energy efficient and chemical free system
• Advanced, user friendly, space saving design allows the customer to maintain and service the system easily
• Equipped to inactivate 99.99% chlorine-resistant parasites such as Cryptosporidium and Giardia; harmful bacteria like E.coli; and microscopic viruses
• Specially designed and tested lamps provide consistent and reliable ultraviolet output
• Built with a durable stainless steel chamber to prolong life and eliminate UV light degradation
• LCD controller displays remaining lamp life and problems in system
• Monitored system are equipped with UV sensors which provide a continuous readout of UV intensity
UV Products

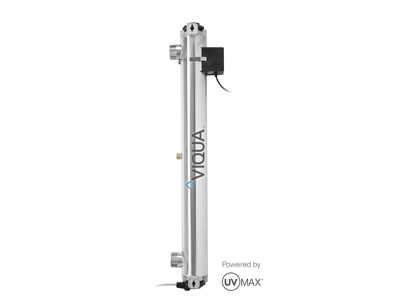

UVMaxK
Specifications:
i) Latest amalgam lamp technology provides 4x more UV power than standard lamps
ii) Incorporates cool touch fan technology
iii) Displays lamp life in daysand lamp change reminder
iv) Flow rate up to 80 GPM
v) Dimensions: 41” X 4”
vi) Connection size: 2” MNPT
vii) Power consumption: 230W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors
UV Max K+
Specifications:
i) Latest amalgam lamp technology provides 4x more UV power than standard lamps
ii) LCD displays remaining lamp life, UV intensity, support and contact information
iii) Continuous feedback of the UV disinfection performance through a UV sensor
iv) Flow rate up to 80 GPM
v) Dimensions: 41” X 4”
vi) Connection size: 2” MNPT
vii) Power consumption: 230W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

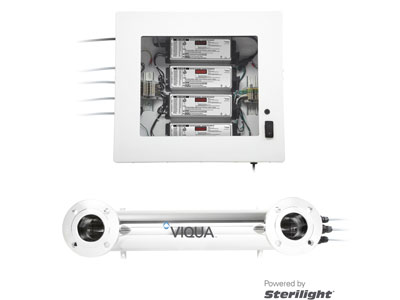

SHF-140
Specifications:
i) Multi lamp UV disinfection system
ii) Separate control panels with high visibility components
iii) Flow rate up to 143 GPM at 95% UVT water
iv) Dimensions: 34” X 6” X 14”
v) Connection size: 3” flanges
vi) Power consumption: 320W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

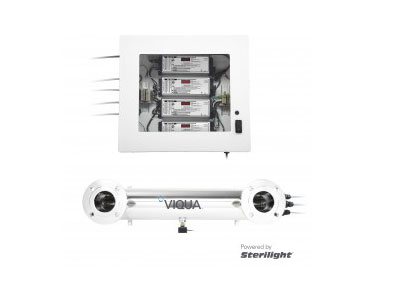

SHFM-140
Specifications:
i) Multi lamp UV disinfection system
ii) Separate control panels with high visibility components
iii) Continuous feedback of the UV disinfection performance through a UV sensor
iv) Flow rate up to 143 GPM at 95% UVT water
v) Dimension: 34” X 6” X 14”
vi) Connection size: 3” flanges
vii) Power consumption: 320W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

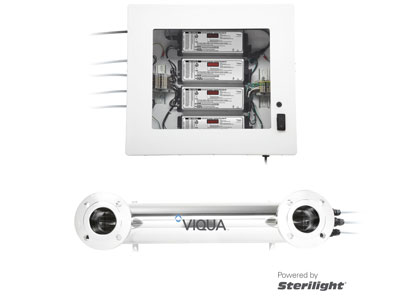

SHF-180
Specifications:
i) Multi lamp UV disinfection system
ii) Separate control panels with high visibility components
iii) Flow rate up to 183 GPM at 95% UVT water
iv) Dimensions: 42 ½” X 6” X 14”
v) Connection size: 3” flanges
vi) Power consumption: 400W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

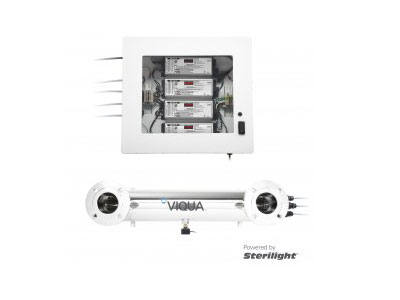

SHFM-180
Specifications:
i) Multi lamp UV disinfection system
ii) Separate control panels with high visibility components
iii) Continuous feedback of the UV disinfection performance through a UV sensor
iv) Flow rate up to 183 GPM at 95% UVT water
v) Dimensions: 42 ½” X 6” X 14”
vi) Connection size: 3” flanges
vii) Power consumption: 400W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

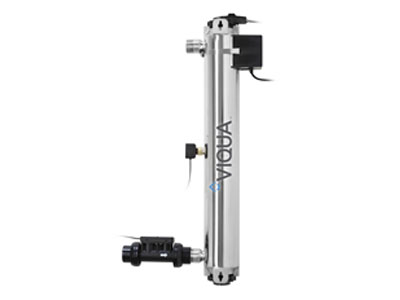

PRO 20
Specifications:
i) NSF 55 Class “A” certified commercial grade UV system
ii) Marketleading flow meter and UV sensor combination provides real time UV dose
iii) Incorporates cool touch fan technology
iv) Flow rate up to 20 GPM at 70% UVT
v) Dimensions: 31” X 4”
vi) Connection size: 1 ¼” MNPT / 1” FNPT combo
vii) Power consumption: 160W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

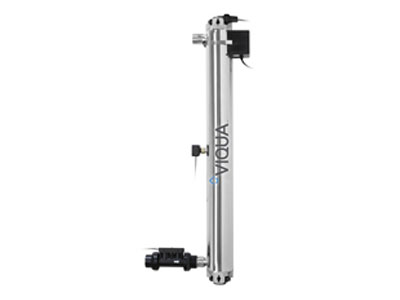

PRO 30
Specifications:
i) NSF 55 Class “A” certified commercial grade UV system
ii) Market leading flow meter and UV sensor combination provides real time UV dose
iii) Incorporates cool touch fan technology
iv) Flow rate up to 30 GPM at 70% UVT
v) Dimensions: 41” X 4”
vi) Connection size: 1 ¼” MNPT / 1” FNPT combo
vii) Power consumption: 230W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

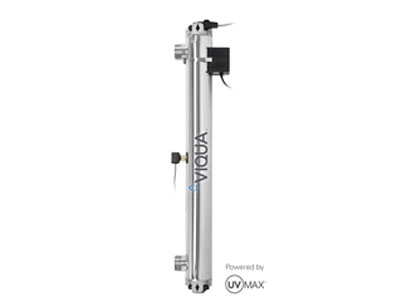

PRO 50
Specifications:
i) USEPA validated commercial grade UV system
ii) Market leading flow meter and UV sensor combination provides real time UV dose
iii) Incorporates cool touch fan technology
iv) Flow rate up to65 GPM
v) Dimensions: 41” X 4”
vi) Connection size: 2” MNPT
vii) Power consumption: 230W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors

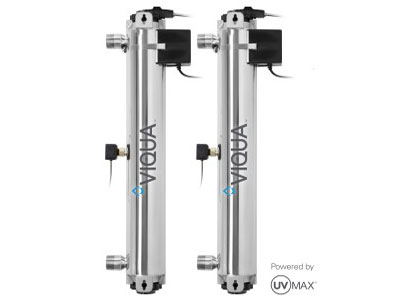

PRO24-186
Specifications:
i) 4 log reduction of viruses, including Adenovirus Log reduction
ii) 2 chamber, ultra-high output amalgam UV lamps
iii) Incorporates cool touch fan technology
iv) Fully validated to UVDGM protocol for 4 Log Adenovirus
v) Reducesor removes the need for chemicals with an environmentally friendly UV System
vi) Flow rate up to24 GPM at186 mJ/cm2
vii) Dimensions: 41” X 18”
viii) Connection size: 1 ¼” MNPT and 1” FNPT combo
ix) Power consumption: 460W
Warranty:
i) Ten year limited warranty for the VIQUA UV chamber
ii) Three year limited warranty for electrical and hardware components
iii) One year limited warranty for lamps, sleeves, and UV sensors
