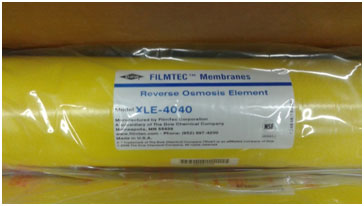

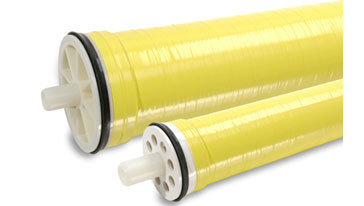

DOW Filmtec™ Nano-filtration Membrane

Features :

• High productivity performance while removing a high percentage of salts, nitrate, iron and organic compounds such as pesticides, herbicides
• Available in a variety of sizes to meet a wide range of space requirement
• Extra low energy elements operate at the lowest pressure resulting in lower energy cost

Specifications :

• Membrane type: Polyamide Thin-Film composite
• Maximum Operating Temperature: 113°F (45°C)
• Maximum Operating Pressure: 600 psig
• Maximum Feed flow rate: 6 to 16 GPM
• Maximum Pressure Drop: 13-15 psig
• pH Range: 2-11 (continuous operation)
• Short-term cleaning (30 min): 1-12
• Maximum Feed Silt Density Index (SDI): 5
• Free chlorine tolerance: < 0.1 ppm

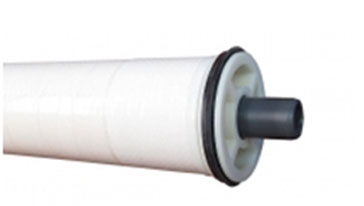

GE Desal TFC RO Membrane

Features :

• Ideal for operating in low water pressure situations that require high NaCl rejection
• Employs crossflow filtration to extend service life
• Incoming water will sweep away matters builds on membrane surface through the reject stream
• Purified water flows out a separate stream

Specifications :

• Operating Pressure : 225 psi
• Thin film membrane
• High NaCl rejection rate

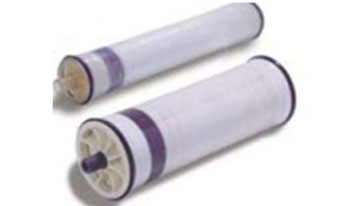

GE Desal Nano Filtration Membrane (Model # HL2521TF)

Features :

• Primarily softens water, reduces color and THM ( a by-product of chlorine disinfection)
• Operate under low pressure
• H series filters have a molecular weight cut-off 150-300 Daltons

Specifications :

• Dimension: 2.5” X 21”
• Flow rate: 380 GPD
• Thin Film Membrane
